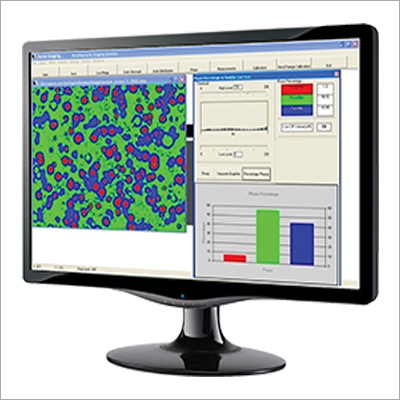

Weld Penetration Analyzer

Product Description

Weld structure analysis is extremely important to understand the quality of the weld, which in turn helps to understand the strength, performance and durability of the welded component. Any kind of weld such as butt weld, lap weld or T-joint weld should pass through the stringent macrographic inspection to reveal the intended quality, anomalies or disparities.

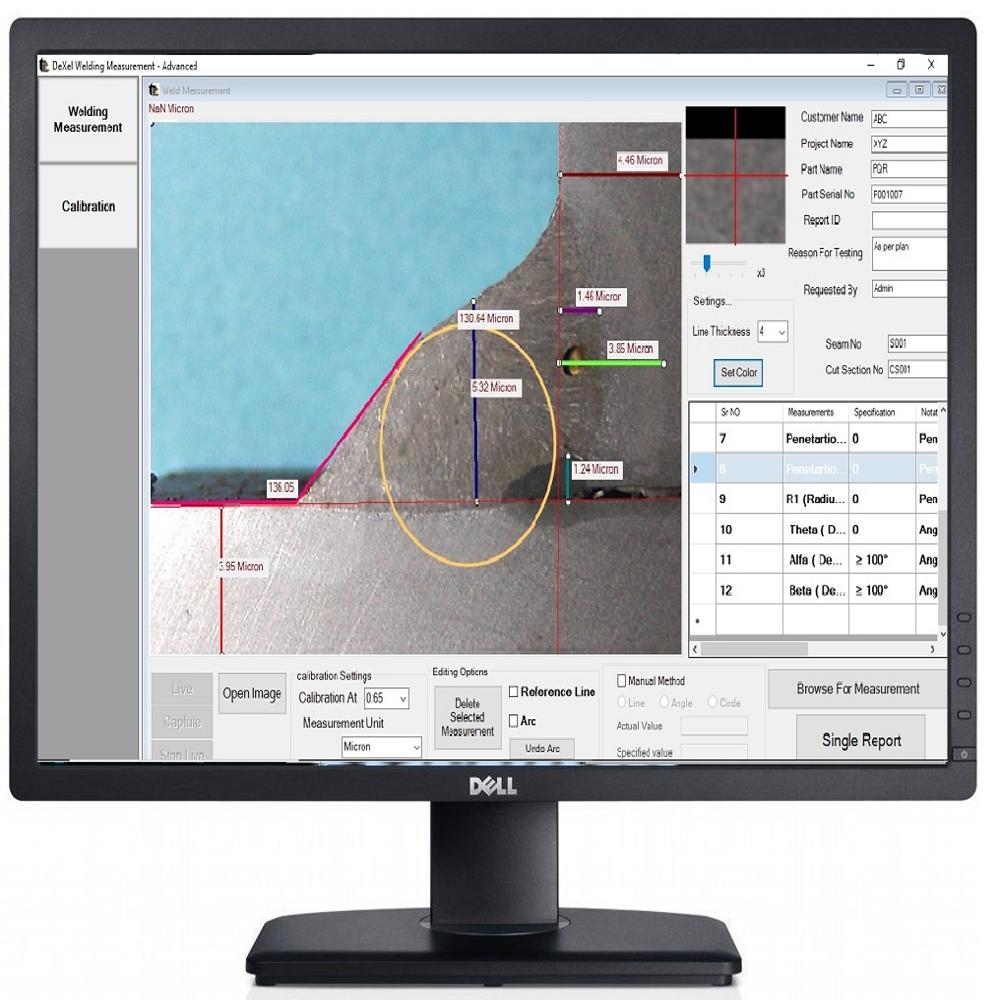

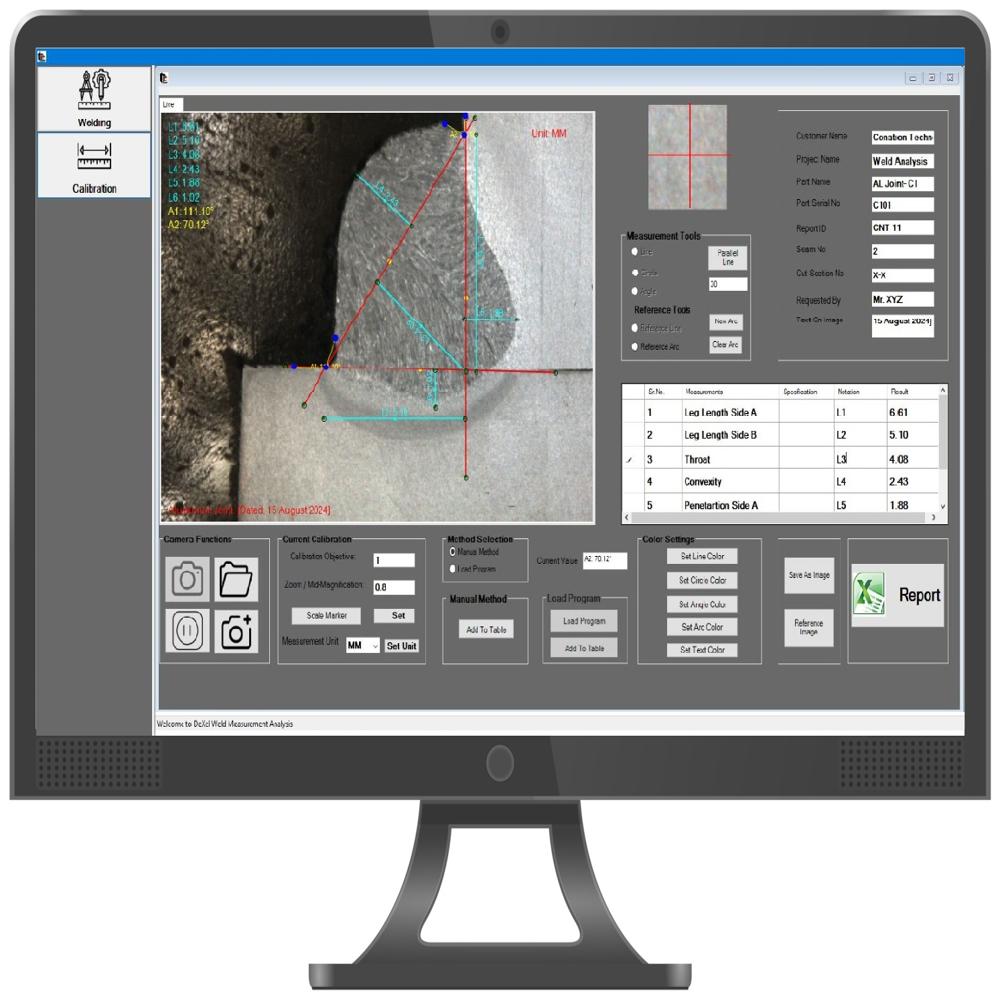

Similar to metallography analysis, weld joint need to be cut in cross-sectional direction, polished to the mirror finish and etched with appropriate etchant to reveal the structure of bead, surrounding area, heat affected zone, weld passes etc. This sample then is placed under stereozoom microscope and further analysis can be carried out with DeXel-Weld Image analyzer.
